Ventily tlaku oleje/race - Typ 1/3 motory (1969 » 03)

Ventily a zesílené pružiny pro přepouštění tlaku oleje set.

Osazení v spodní části bloku motoru. Pro zvýšení tlaku oleje při montáži externího chladiče oleje. Nepoužívejte, pokud je motor osazen Std chladičem oleje (může dojít k jeho totálnímu poškození).

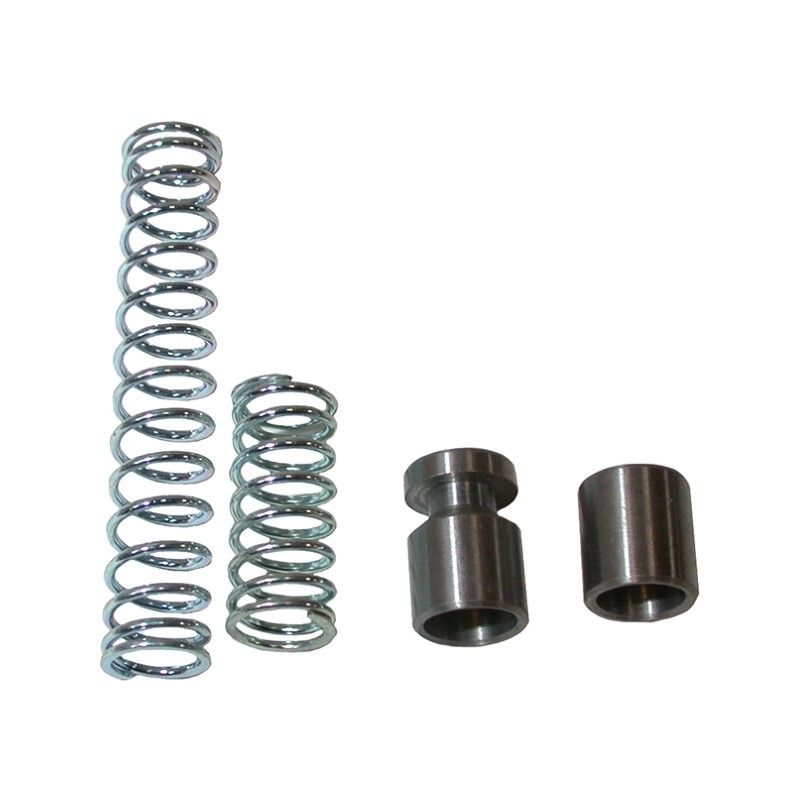

Oil pressure increases set.

If a pump is mounted with a greater yield than have the oil pressure plunger (s) to be adjusted. This kit replaces the original spring and plunger on the underside of the engine (large slot bolts), and ensures that the oil pressure is increased for improved bearing lubrication and proper functioning of the oil cooler. The difference between the construction years is the presence of one or two of said slot bolts, up to 7/1969, is that there is one and below, two bolts mounted. Note: The plunger needs to be flexible in the sump slide, this is not the case, it will you plunger with fine sandpaper should rework . If the plunger remains stabbing may have unpleasant consequences for the oil pressure in the crankcase. To increase the oil pressure set is provided with two oil pressure plungers can hear the long spring with the "mushroom" shaped plunger on the side of the pulley and the short spring with the normal plunger on the flywheel side.

T.1/3 engines r.v. 8/69 » 7/03 (1.3 - 1.6 race)
