Písty/válce/kit - Typ 1/3/CT/CZ motory (69x87mm)

Písty/válce lité kit 1641 cc (lze osadit 1600 blok motoru).

Big bore cylinder/piston kit 1641 cc casted (1600 slip-in).

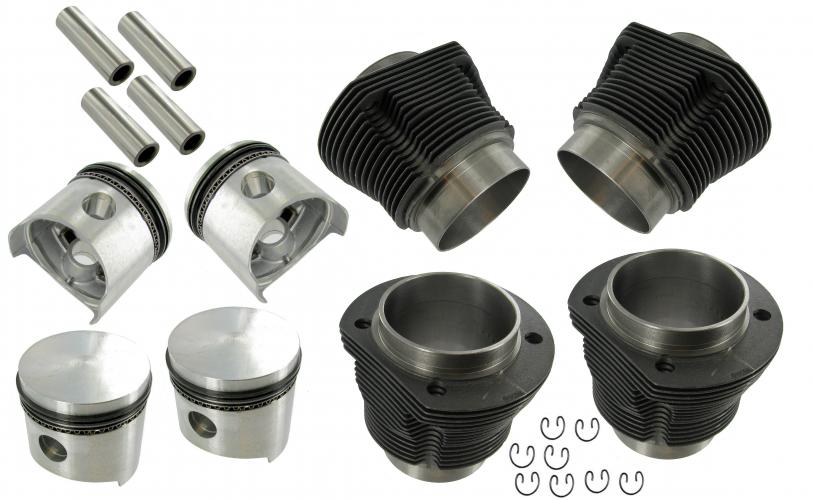

Big bore cylinder and piston sets, wanna more power, there are many possibilities, you can go without tune your capacity to adapt, while you can think of changing cylinder heads, camshaft etc., but you can also be shed, you may displacement without sump modifications (slip-in cylinder) or if you are limited in the cylinder concerned. For a larger displacement will have to adapt (removing) the crankcase and if you then need a crankshaft with a longer stroke is a chance that you will also need to edit the inside of the crankcase you will understand that something more is here look. All big bore cylinder and piston kit are supplied complete with four pistons, cylinders, piston rings, piston pins and retaining clips. If not specified, the feature sets of cast pistons which, in many cases have been treated with graphite coating for a lower piston temperature and longer life. The dimensions indicate the space in the crankcase or cylinder, the cylinder size is slightly smaller.

T.1 engines motor bore vrtání 87 mm stroke zdvih 69 mm case do bloku 90 mm
head hlava 94 mm piston pin pístní čep Ø 22 mm

T.3/CT/CZ engines
