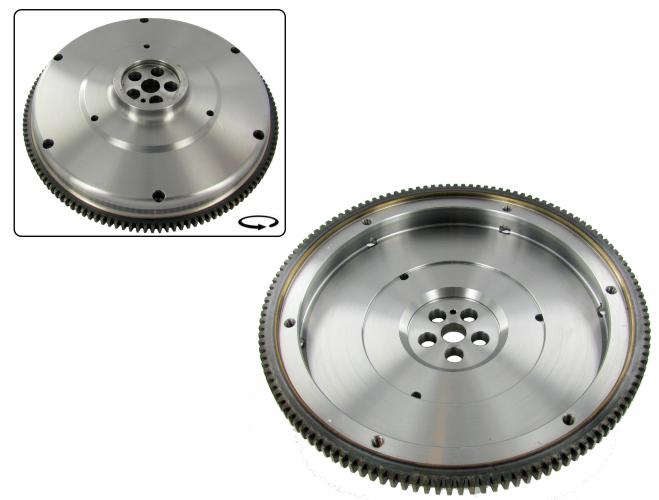

Setrvačník motoru 215mm/6.47kg - Typ 2/25 (IV motory)

Setrvačník otoru pro přestavbu 215 mm.

Lehčí setrvačník pomáhá přenést více energie a je vhodný pro vyšší obsahy.

Průměr spojkové lamely: 215 mm
Počet zubů: 130
Hmotnost: 6.47 kg
Materiál: kovaná chrommolybdenová ocel

215 mm conversion flywheel.

Clutch disc diameter: 215 mm
Number of Teeth: 130
Weight: 6.47 kg
Material: forged chromoly

A lighter flywheel helps to bring more power, but is more suitable for engines with higher speed. The 200 mm Type 1 and Type 3 flywheel is suitable for an 8 pin connection on the crankshaft (flywheel that will fit the original 4 pins). Because one of the 8 holes drilled asymmetrical fit the flywheel only one way on the crankshaft (all crankshafts with counterweight is drilled in the same way), which is very important in balancing the crankshaft pulley and flywheel. If you use the standard crankshaft want with 8 pins using the special drilling tool like this into account with asymmetrical drilling the holes. The type of fly-wheels 4 are mounted by bolts, and are provided with a locating pin which ensures that the flywheel in only one way can be put on. For all flywheels is advisable to the flywheel with the crankshaft pulley and to balance, reducing strain on the main bearings and vibration to a minimum. The Type 4 flywheels are available for the 210 mm and 215 mm clutch plate and a custom flywheel designed for a 200 mm clutch plate. With this last flywheel is thus possible to a type 4 engine mounted in a type 1 or type 3 gearbox without having to adapt the gearbox. All flywheels have teeth 130 which is popularly known as a 12 volt flywheel is called. Behind the engine type for which the flywheel is to state the total weight and the diameter of the clutch plate / clutch set. (type 1 and type 3 engines): Before assembling, or the pins too much slack exhibit excess clearance can lead to loose the flywheel what enormous damage.

Type IV engines
